VP

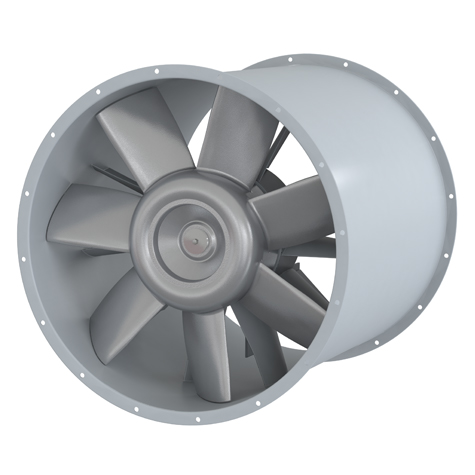

Type P Vaneaxial Fan, Direct Drive

Application

The VP, Type “P”, vaneaxial fan is ideal for installation in hospitals, schools, research labs, fume exhaust systems and high moisture areas. The fan housing is fitted with aerodynamically designed, stationary straightening guide vanes on the air discharge side of the impeller. The guide vanes are welded to both the inner cylinder and the fan housing interior. The vanes function to aid in the elimination of swirl and turbulence downstream of the fan, thereby recovering rotational energy losses, improving efficiency and static pressure capability, and reducing fan noise generation.

The heart of the VP, Type “P” fan lies in its impeller. Cast of high strength aluminum alloy, the one-piece impeller has been developed to maximize the highest efficiency possible. With the wide range of hub-to-tip ratios available, the VP can fan meet an impressive assortment of air moving requirements.

Sizes (impeller diameters)

• 12 to 60 inches (305 mm to 1,525 mm)

Performance

• Airflow to 103,000 CFM (175,900 m³/hour)
• Static pressure to 5.5 inches w.g. (1,370 Pa)
